Anti-static Liquid Resistant to Washing

Anti-static Liquid Resistant to Washing  NANO-4001

Product Introduction

The anti-static liquid that is resistant to washing is a neutral aqueous solution, non-toxic, non-flammable, and pollution-free, making it safe to use. When applied to the surface of objects, it forms an extremely thin transparent film that provides long-lasting and highly efficient anti-static and static dissipation functions. It effectively eliminates static electricity accumulation caused by friction, prevents static interference and dust adhesion phenomena, and maintains a transparent and aesthetically pleasing appearance. It remains effective even at humidity levels below 20%. Depending on the usage conditions, the anti-static properties can last from three months to a year. The anti-static liquid also has the functions of cleaning, decontaminating, and polishing.

The static dissipation performance indicators of this product: surface resistance, volume resistance, and triboelectric voltage comply with the requirements of SJ/T 10694-2006, and the static decay period complies with the requirements of GJB 3007A-2009.

Technical Parameters

Model: Nano-4001

pH: 7.0±0.2

Appearance: Light blue emulsion

Anti-slip coefficient: >0.5 (ASTM D2047-82)

Surface resistivity: 10⁶ to 10⁹ ohms

Composition: Water, acrylic polymer, polyethylene, zinc carbonate, polythiophene, etc.

Packaging specifications: 1L/bucket, 5L/bucket

Scope of Application

Suitable for any surface of items that require static control, such as desktops, countertops, plastic products, packaging, storage boxes, pallets, blankets, fabrics, etc., including:

1. Hollow board, rubber products, thermoforming products, non-polar material products.

2. Precision parts, spray-oiled parts.

3. Cardboard boxes, sponge, pearl cotton, packaging, storage boxes.

4. PVC flooring, mats, conveyor belts.

5. Injection-molded products such as PA, ABS, PS, PC, turnover boxes.

6. PET, PS, PVC sheets.

7. Desktops, countertops, plastic products, pallets, blankets, fabrics.

Application Examples

Eliminate static electricity generated on carpets.

Eliminate static electricity accumulated on machinery, workbenches, tools, conveyor belts, clothing, and other materials.

Eliminate paper jamming and dust suction issues caused by static electricity during printing and packaging.

Prevent fires and explosions caused by static electricity in flammable and volatile gases.

Eliminate static electricity generated on seats.

Anti-static Principle and Features of Polythiophene Coating

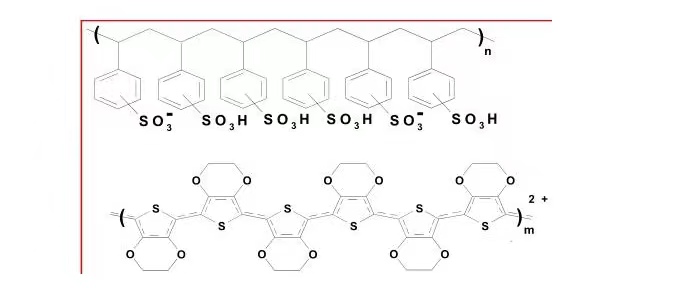

The three inventors of intrinsically conductive polymers were awarded the Nobel Prize in Chemistry in 2000. Poly(3,4-ethylenedioxythiophene):polystyrene sulfonate (PEDOT:PSS) is an intrinsically conductive polymer with a conjugated structure of conductive channels, as shown in the structural diagram below.

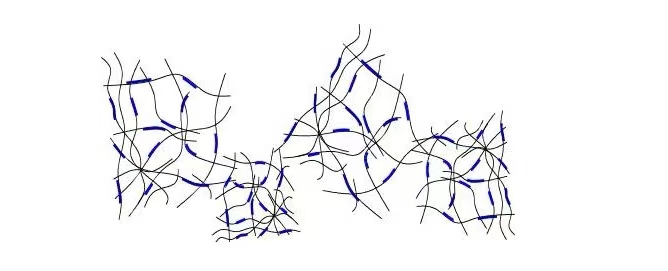

The coating containing polythiophene can form a conductive network structure (see the diagram below), thus achieving anti-static effects.

Features of PEDOT:PSS Anti-static Coating:

1. High transparency

2. Surface resistance unaffected by humidity

3. Permanent conductivity

4. No black particles (meets high cleanliness requirements)

5. Easy to achieve low surface resistance

6. Stable conductivity (e.g., less affected by temperature)

7. Safety: Water-based paint, non-toxic

8. Ultra-low surface tension, strong adsorption

9. Excellent wear resistance

Usage Method

Choose the appropriate application method based on the shape, size, and surface condition of the item to be coated. Such as spray coating, roller coating, brush coating, velvet cloth coating, brush coating, and immersion coating.

Precautions: Keep away from light. Although this product is non-toxic, it should not be consumed. If it accidentally enters the eyes or mouth, please wash with plenty of water or go to the hospital for examination. Keep it out of reach of children when not in use.
